cz.cuni.amis.pogamut.sposh.ut2004

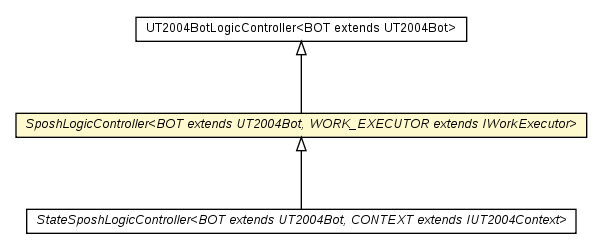

Class SposhLogicController<BOT extends UT2004Bot,WORK_EXECUTOR extends IWorkExecutor>

java.lang.Object
  cz.cuni.amis.pogamut.ut2004.bot.impl.UT2004BotController<BOT>
      cz.cuni.amis.pogamut.ut2004.bot.impl.UT2004BotLogicController<BOT>
          cz.cuni.amis.pogamut.sposh.ut2004.SposhLogicController<BOT,WORK_EXECUTOR>

All Implemented Interfaces:

cz.cuni.amis.pogamut.base.agent.module.IAgentLogic<cz.cuni.amis.pogamut.base.agent.module.LogicModule>, IUT2004BotController<BOT>, IUT2004BotLogicController<BOT,cz.cuni.amis.pogamut.base.agent.module.LogicModule>

Direct Known Subclasses:

StateSposhLogicController

public abstract class SposhLogicController<BOT extends UT2004Bot,WORK_EXECUTOR extends IWorkExecutor>
extends UT2004BotLogicController<BOT>

Logic controller that utilizes sposh engine for decision making of bot in UT2004 environment.

Sposh requires two things: plan and primitives. The plan is provided by SposhLogicController#getPlan() method and are supplied by IWorkExecutor. IWorkExecutor is instantiated during first call of logic, so if the varioud modules are already initialized.

If needed, override createTimer(), but it shouldn't be needed.

Author:

Honza H.

Field Summary

static String

SPOSH_LOG_CATEGORY

Fields inherited from class cz.cuni.amis.pogamut.ut2004.bot.impl.UT2004BotLogicController

logicModule

Fields inherited from class cz.cuni.amis.pogamut.ut2004.bot.impl.UT2004BotController

bot, log, USER_LOG_CATEGORY_ID

Constructor Summary

SposhLogicController()

Method Summary

protected ITimer	createTimer() Create timer for posh engine.
protected abstract WORK_EXECUTOR	createWorkExecutor() Create IWorkExecutor that will execute primitives contained in the plan.
protected List<PoshEngine>	getEngines() Get engines used by this bot.
protected String	getPlanFromFile(String filename) Read POSH plan from the file and return it.
protected String	getPlanFromResource(String resourcePath) Get POSh plan from resource int the same jar as the class.
protected String	getPlanFromStream(InputStream in) Read POSH plan from the stream and return it.
protected abstract List<String>	getPlans() Get all Yaposh plans this bot is supposed to execute.
protected List<String>	getPlansFromDirectory(String directoryPath) Reads all '.lap' file from specified directory.
protected ITimer	getTimer() Get timer that is used by posh engine to make sure timeouts and other stuff that requires time are working properly.
protected WORK_EXECUTOR	getWorkExecutor() Get work executor.
void	initializeController(BOT bot) .
void	logic() Logic method evaluates all Yaposh plans in same order as they were specified.
protected void	logicAfterPlan() Method that is triggered every time the plan for executor is evaluated.
protected void	logicBeforePlan() Method that is triggered every time the plan for executor is evaluated.

Methods inherited from class cz.cuni.amis.pogamut.ut2004.bot.impl.UT2004BotLogicController

beforeFirstLogic, getLogicInitializeTime, getLogicShutdownTime, initializeLogic, logicInitialize, logicShutdown

Methods inherited from class cz.cuni.amis.pogamut.ut2004.bot.impl.UT2004BotController

botFirstSpawn, botInitialized, botKilled, botShutdown, finishControllerInitialization, getAct, getBot, getInitializeCommand, getLog, getName, getPassword, getWorldView, prepareBot

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface cz.cuni.amis.pogamut.ut2004.bot.IUT2004BotController

botFirstSpawn, botInitialized, botKilled, botShutdown, finishControllerInitialization, getAct, getBot, getInitializeCommand, getLog, getPassword, getWorldView, prepareBot

Field Detail

SPOSH_LOG_CATEGORY

public static final String SPOSH_LOG_CATEGORY

See Also:

Constant Field Values

Constructor Detail

SposhLogicController

public SposhLogicController()

Method Detail

initializeController

public void initializeController(BOT bot)

. Yaposh egnines that will be used by this bot are created here (so getEngines() doesn't return empty list after this).

Specified by:

initializeController in interface IUT2004BotController<BOT extends UT2004Bot>

Overrides:

initializeController in class UT2004BotLogicController<BOT extends UT2004Bot>

Parameters:

bot -

createWorkExecutor

protected abstract WORK_EXECUTOR createWorkExecutor()

Create IWorkExecutor that will execute primitives contained in the plan. This method will be called only once.

Returns:

executor to execute primitives.

getWorkExecutor

protected final WORK_EXECUTOR getWorkExecutor()

Get work executor. If work executor is not yet created, create one using createWorkExecutor().

Returns:

work executor for this bot controller.

logic

public final void logic()

Logic method evaluates all Yaposh plans in same order as they were specified.

Specified by:

logic in interface cz.cuni.amis.pogamut.base.agent.module.IAgentLogic<cz.cuni.amis.pogamut.base.agent.module.LogicModule>

Overrides:

logic in class UT2004BotLogicController<BOT extends UT2004Bot>

logicBeforePlan

protected void logicBeforePlan()

Method that is triggered every time the plan for executor is evaluated. It is triggered right before the plan evaluation. Currently, it checks if workExecutor is a ILogicWorkExecutor and if it is, it executes ILogicWorkExecutor.logicBeforePlan().

logicAfterPlan

protected void logicAfterPlan()

Method that is triggered every time the plan for executor is evaluated. It is triggered right after the plan evaluation. Currently, it checks if workExecutor is a ILogicWorkExecutor and if it is, it executes ILogicWorkExecutor.logicBeforePlan().

createTimer

protected ITimer createTimer()

Create timer for posh engine. By default, use SystemClockTimer.

Returns:

See Also:

getTimer()

getTimer

protected final ITimer getTimer()

Get timer that is used by posh engine to make sure timeouts and other stuff that requires time are working properly.

Returns:

getEngines

protected final List<PoshEngine> getEngines()

Get engines used by this bot.

Returns:

Empty list if engine wasn't yet created(they are created in initializeController(UT2004Bot) ) or the engines.

getPlans

protected abstract List<String> getPlans()
                                  throws IOException

Get all Yaposh plans this bot is supposed to execute. The plans will be executed in same order as in the returned list. Easiest way is to use getPlanFromResource(java.lang.String), getPlanFromFile(java.lang.String), or {@link #getPlansFromDirectory(String)}. .

Returns:

List of sources of the plans

Throws:

IOException

getPlanFromStream

protected final String getPlanFromStream(InputStream in)
                                  throws IOException

Read POSH plan from the stream and return it. Close the stream.

Parameters:

in - Input stream from which the plan is going to be read

Returns:

Text of the plan, basically content of the stream

Throws:

IOException - If there is some error while reading the stream

getPlansFromDirectory

protected final List<String> getPlansFromDirectory(String directoryPath)
                                            throws IOException

Reads all '.lap' file from specified directory. They are alphabetically sorted (ascending order).

Parameters:

directoryPath -

Returns:

Throws:

IOException

getPlanFromFile

protected final String getPlanFromFile(String filename)
                                throws IOException

Read POSH plan from the file and return it.

Parameters:

filename - Path to the file that contains the POSH plan.

Returns:

Text of the plan, basically content of the file

Throws:

IOException - If there is some error while reading the stream

getPlanFromResource

protected final String getPlanFromResource(String resourcePath)
                                    throws IOException

Get POSh plan from resource int the same jar as the class.

  // Plan is stored in package cz.cuni.amis.pogamut.testbot under name poshPlan.lap
  // This can get the file from .jar or package structure
  getPlanFromResource("cz/cuni/amis/pogamut/testbot/poshPlan.lap");


Parameters:

resourcePath - Path to the plan in some package

Returns:

Content of the plan.

Throws:

IOException - if something goes wrong, like file is missing, hardisk has blown up ect.
