cz.cuni.amis.pogamut.ut2004.communication.messages.gbinfomessages
Class ConfigChangeMessage

java.lang.Object
  cz.cuni.amis.pogamut.base.communication.messages.InfoMessage
      cz.cuni.amis.pogamut.ut2004.communication.messages.gbinfomessages.ConfigChange
          cz.cuni.amis.pogamut.ut2004.communication.messages.gbinfomessages.ConfigChangeMessage

All Implemented Interfaces:

IWorldChangeEvent, IWorldObjectUpdatedEvent, IWorldEvent, IWorldObject, ICompositeWorldObjectUpdatedEvent, ICompositeWorldObject, cz.cuni.amis.utils.listener.Event

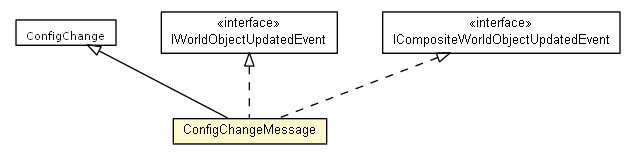

public class ConfigChangeMessage
extends ConfigChange
implements IWorldObjectUpdatedEvent, ICompositeWorldObjectUpdatedEvent

Implementation of the GameBots2004 message CONFCH contains also its Local/Shared/Static subpart class definitions..

Complete message documentation: Asynchronous message. Message sent when the bot configuration changed - each agent has a lot of parameters affecting his state in the environment. See each property for the details.

Nested Class Summary

class	ConfigChangeMessage.ConfigChangeLocalMessage Implementation of the local part of the GameBots2004 message CONFCH, used to facade CONFCHMessage.
class	ConfigChangeMessage.ConfigChangeSharedMessage Implementation of the shared part of the GameBots2004 message CONFCH, used to facade CONFCHMessage.
class	ConfigChangeMessage.ConfigChangeStaticMessage Implementation of the static part of the GameBots2004 message CONFCH, used to facade CONFCHMessage.

Nested classes/interfaces inherited from class cz.cuni.amis.pogamut.ut2004.communication.messages.gbinfomessages.ConfigChange

ConfigChange.ConfigChangeUpdate

Nested classes/interfaces inherited from interface cz.cuni.amis.pogamut.base.communication.translator.event.IWorldObjectUpdatedEvent

IWorldObjectUpdatedEvent.DestroyWorldObject

Field Summary

protected String	Action Name of current BDI action.
protected boolean	Action_Set Whether property 'Action' was received from GB2004.
protected boolean	AutoPickupOff It enables/disables automatic pickup of the bot.
protected boolean	AutoPickupOff_Set Whether property 'AutoPickupOff' was received from GB2004.
protected boolean	AutoTrace True if the bot is using auto ray tracing (is provided with synchronous ATR messages).
protected boolean	AutoTrace_Set Whether property 'AutoTrace' was received from GB2004.
protected UnrealId	BotId Unique Id of the bot.
protected boolean	BotId_Set Whether property 'BotId' was received from GB2004.
protected boolean	DrawTraceLines if the GB should draw lines representing the auto ray traces of the bot (for more information see ATR message).
protected boolean	DrawTraceLines_Set Whether property 'DrawTraceLines' was received from GB2004.
protected UnrealId	Id Id of this config message.
protected boolean	Id_Set Whether property 'Id' was received from GB2004.
protected boolean	Invulnerable If bot is invulnerable (cannot die) or not.
protected boolean	Invulnerable_Set Whether property 'Invulnerable' was received from GB2004.
protected boolean	ManualSpawn True if we have to spawn the bot manually after each death
protected boolean	ManualSpawn_Set Whether property 'ManualSpawn' was received from GB2004.
protected String	Name The bot's name.
protected boolean	Name_Set Whether property 'Name' was received from GB2004.
protected Rotation	RotationRate Bot rotation rate.
protected boolean	RotationRate_Set Whether property 'RotationRate' was received from GB2004.
protected double	SelfUpdateTime The delay between two self message synchronous batches (can range from 0.01 to 2 seconds).
protected boolean	SelfUpdateTime_Set Whether property 'SelfUpdateTime' was received from GB2004.
protected boolean	ShowDebug If some additional debug information will be shown in the UT2004 server console window.
protected boolean	ShowDebug_Set Whether property 'ShowDebug' was received from GB2004.
protected boolean	ShowFocalPoint If true an actor visualizing the location the bot is actually looking at will appear in the game.
protected boolean	ShowFocalPoint_Set Whether property 'ShowFocalPoint' was received from GB2004.
protected double	SpeedMultiplier Bots default speed will be multiplied by this number.
protected boolean	SpeedMultiplier_Set Whether property 'SpeedMultiplier' was received from GB2004.
protected boolean	SynchronousOff It informs if sending of all GB synchronous messages is enabled or disabled.
protected boolean	SynchronousOff_Set Whether property 'SynchronousOff' was received from GB2004.
protected ITeamId	TeamId
protected double	VisionTime The delay between two synchronous batches containing vision updates (can range from 0.1 to 2 seconds).
protected boolean	VisionTime_Set Whether property 'VisionTime' was received from GB2004.

Fields inherited from class cz.cuni.amis.pogamut.ut2004.communication.messages.gbinfomessages.ConfigChange

PROTOTYPE, SimTime

Constructor Summary

ConfigChangeMessage()
Parameter-less contructor for the message.

ConfigChangeMessage(ConfigChangeMessage original)
Cloning constructor from the full message.

ConfigChangeMessage(UnrealId Id, UnrealId BotId, boolean ManualSpawn, boolean AutoTrace, String Name, double SpeedMultiplier, Rotation RotationRate, boolean Invulnerable, double SelfUpdateTime, double VisionTime, boolean ShowDebug, boolean ShowFocalPoint, boolean DrawTraceLines, boolean SynchronousOff, boolean AutoPickupOff, String Action)
Creates new instance of the message ConfigChange.

Method Summary

String	getAction() Name of current BDI action.
UnrealId	getBotId() Unique Id of the bot.
UnrealId	getId() Id of this config message.
ConfigChangeLocal	getLocal()
ILocalWorldObjectUpdatedEvent	getLocalEvent()
String	getName() The bot's name.
Rotation	getRotationRate() Bot rotation rate.
double	getSelfUpdateTime() The delay between two self message synchronous batches (can range from 0.01 to 2 seconds).
ConfigChangeShared	getShared()
ISharedWorldObjectUpdatedEvent	getSharedEvent()
double	getSpeedMultiplier() Bots default speed will be multiplied by this number.
ConfigChangeStatic	getStatic()
IStaticWorldObjectUpdatedEvent	getStaticEvent()
ITeamId	getTeamId()
double	getVisionTime() The delay between two synchronous batches containing vision updates (can range from 0.1 to 2 seconds).
boolean	isAutoPickupOff() It enables/disables automatic pickup of the bot.
boolean	isAutoTrace() True if the bot is using auto ray tracing (is provided with synchronous ATR messages).
boolean	isDrawTraceLines() if the GB should draw lines representing the auto ray traces of the bot (for more information see ATR message).
boolean	isInvulnerable() If bot is invulnerable (cannot die) or not.
boolean	isManualSpawn() True if we have to spawn the bot manually after each death
boolean	isShowDebug() If some additional debug information will be shown in the UT2004 server console window.
boolean	isShowFocalPoint() If true an actor visualizing the location the bot is actually looking at will appear in the game.
boolean	isSynchronousOff() It informs if sending of all GB synchronous messages is enabled or disabled.
protected void	setTeamId(ITeamId TeamId) Used by Yylex to slip corretn TeamId.
String	toHtmlString()
String	toString()
IWorldObjectUpdateResult<IWorldObject>	update(IWorldObject object)

Methods inherited from class cz.cuni.amis.pogamut.ut2004.communication.messages.gbinfomessages.ConfigChange

getSimTime, setSimTime, toJsonLiteral

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface cz.cuni.amis.pogamut.base.communication.translator.event.IWorldChangeEvent

getSimTime

Field Detail

TeamId

protected ITeamId TeamId

Id

protected UnrealId Id

Id of this config message. This Id is generated from BotId, string "_CONFCH" is added at the end.

Id_Set

protected boolean Id_Set

Whether property 'Id' was received from GB2004.

BotId

protected UnrealId BotId

Unique Id of the bot.

BotId_Set

protected boolean BotId_Set

Whether property 'BotId' was received from GB2004.

ManualSpawn

protected boolean ManualSpawn

True if we have to spawn the bot manually after each death

ManualSpawn_Set

protected boolean ManualSpawn_Set

Whether property 'ManualSpawn' was received from GB2004.

AutoTrace

protected boolean AutoTrace

True if the bot is using auto ray tracing (is provided with synchronous ATR messages). See ATR messages for more details.

AutoTrace_Set

protected boolean AutoTrace_Set

Whether property 'AutoTrace' was received from GB2004.

Name

protected String Name

The bot's name.

Name_Set

protected boolean Name_Set

Whether property 'Name' was received from GB2004.

SpeedMultiplier

protected double SpeedMultiplier

Bots default speed will be multiplied by this number. Ranges from 0.1 to 2 (default, can be set in ini in [GameBots2004.RemoteBot] MaxSpeed).

SpeedMultiplier_Set

protected boolean SpeedMultiplier_Set

Whether property 'SpeedMultiplier' was received from GB2004.

RotationRate

protected Rotation RotationRate

Bot rotation rate. Default rotation rate is: (Pitch=3072,Yaw=60000,Roll=2048) and may be configured in ini file in [GameBots2004.RemoteBot] DefaultRotationRate. (pitch - up/down, yaw - left/right, roll - equivalent of doing a cartwheel)

RotationRate_Set

protected boolean RotationRate_Set

Whether property 'RotationRate' was received from GB2004.

Invulnerable

protected boolean Invulnerable

If bot is invulnerable (cannot die) or not.

Invulnerable_Set

protected boolean Invulnerable_Set

Whether property 'Invulnerable' was received from GB2004.

SelfUpdateTime

protected double SelfUpdateTime

The delay between two self message synchronous batches (can range from 0.01 to 2 seconds). Will be used only if NewSelfBatchProtocol attribute is set to true in INIT message.

SelfUpdateTime_Set

protected boolean SelfUpdateTime_Set

Whether property 'SelfUpdateTime' was received from GB2004.

VisionTime

protected double VisionTime

The delay between two synchronous batches containing vision updates (can range from 0.1 to 2 seconds). If NewSelfBatchProtocol attribute is set to true in INIT message, more batch messages containing only SELF message will arrive between two vision update batches (containing PLR,PRJ,INV.. messages).

VisionTime_Set

protected boolean VisionTime_Set

Whether property 'VisionTime' was received from GB2004.

ShowDebug

protected boolean ShowDebug

If some additional debug information will be shown in the UT2004 server console window.

ShowDebug_Set

protected boolean ShowDebug_Set

Whether property 'ShowDebug' was received from GB2004.

ShowFocalPoint

protected boolean ShowFocalPoint

If true an actor visualizing the location the bot is actually looking at will appear in the game.

ShowFocalPoint_Set

protected boolean ShowFocalPoint_Set

Whether property 'ShowFocalPoint' was received from GB2004.

DrawTraceLines

protected boolean DrawTraceLines

if the GB should draw lines representing the auto ray traces of the bot (for more information see ATR message).

DrawTraceLines_Set

protected boolean DrawTraceLines_Set

Whether property 'DrawTraceLines' was received from GB2004.

SynchronousOff

protected boolean SynchronousOff

It informs if sending of all GB synchronous messages is enabled or disabled.

SynchronousOff_Set

protected boolean SynchronousOff_Set

Whether property 'SynchronousOff' was received from GB2004.

AutoPickupOff

protected boolean AutoPickupOff

It enables/disables automatic pickup of the bot. If true the items can be picked up through PICK command.

AutoPickupOff_Set

protected boolean AutoPickupOff_Set

Whether property 'AutoPickupOff' was received from GB2004.

Action

protected String Action

Name of current BDI action.

Action_Set

protected boolean Action_Set

Whether property 'Action' was received from GB2004.

Constructor Detail

ConfigChangeMessage

public ConfigChangeMessage()

Parameter-less contructor for the message.

ConfigChangeMessage

public ConfigChangeMessage(UnrealId Id,
                           UnrealId BotId,
                           boolean ManualSpawn,
                           boolean AutoTrace,
                           String Name,
                           double SpeedMultiplier,
                           Rotation RotationRate,
                           boolean Invulnerable,
                           double SelfUpdateTime,
                           double VisionTime,
                           boolean ShowDebug,
                           boolean ShowFocalPoint,
                           boolean DrawTraceLines,
                           boolean SynchronousOff,
                           boolean AutoPickupOff,
                           String Action)

Creates new instance of the message ConfigChange. Asynchronous message. Message sent when the bot configuration changed - each agent has a lot of parameters affecting his state in the environment. See each property for the details. Corresponding GameBots message is CONFCH.

Parameters:

Id - Id of this config message. This Id is generated from BotId, string "_CONFCH" is added at the end.

BotId - Unique Id of the bot.

ManualSpawn - True if we have to spawn the bot manually after each death

AutoTrace - True if the bot is using auto ray tracing (is provided with synchronous ATR messages). See ATR messages for more details.

Name - The bot's name.

SpeedMultiplier - Bots default speed will be multiplied by this number. Ranges from 0.1 to 2 (default, can be set in ini in [GameBots2004.RemoteBot] MaxSpeed).

RotationRate - Bot rotation rate. Default rotation rate is: (Pitch=3072,Yaw=60000,Roll=2048) and may be configured in ini file in [GameBots2004.RemoteBot] DefaultRotationRate. (pitch - up/down, yaw - left/right, roll - equivalent of doing a cartwheel)

Invulnerable - If bot is invulnerable (cannot die) or not.

SelfUpdateTime - The delay between two self message synchronous batches (can range from 0.01 to 2 seconds). Will be used only if NewSelfBatchProtocol attribute is set to true in INIT message.

VisionTime - The delay between two synchronous batches containing vision updates (can range from 0.1 to 2 seconds). If NewSelfBatchProtocol attribute is set to true in INIT message, more batch messages containing only SELF message will arrive between two vision update batches (containing PLR,PRJ,INV.. messages).

ShowDebug - If some additional debug information will be shown in the UT2004 server console window.

ShowFocalPoint - If true an actor visualizing the location the bot is actually looking at will appear in the game.

DrawTraceLines - if the GB should draw lines representing the auto ray traces of the bot (for more information see ATR message).

SynchronousOff - It informs if sending of all GB synchronous messages is enabled or disabled.

AutoPickupOff - It enables/disables automatic pickup of the bot. If true the items can be picked up through PICK command.

Action - Name of current BDI action.

ConfigChangeMessage

public ConfigChangeMessage(ConfigChangeMessage original)

Cloning constructor from the full message.

Parameters:

original -

Method Detail

setTeamId

protected void setTeamId(ITeamId TeamId)

Used by Yylex to slip corretn TeamId.

getTeamId

public ITeamId getTeamId()

getId

public UnrealId getId()

Description copied from class: ConfigChange

Id of this config message. This Id is generated from BotId, string "_CONFCH" is added at the end.

Specified by:

getId in interface IWorldObjectUpdatedEvent

Specified by:

getId in interface IWorldObject

Specified by:

getId in interface ICompositeWorldObjectUpdatedEvent

Specified by:

getId in class ConfigChange

getBotId

public UnrealId getBotId()

Description copied from class: ConfigChange

Unique Id of the bot.

Specified by:

getBotId in class ConfigChange

isManualSpawn

public boolean isManualSpawn()

Description copied from class: ConfigChange

True if we have to spawn the bot manually after each death

Specified by:

isManualSpawn in class ConfigChange

isAutoTrace

public boolean isAutoTrace()

Description copied from class: ConfigChange

True if the bot is using auto ray tracing (is provided with synchronous ATR messages). See ATR messages for more details.

Specified by:

isAutoTrace in class ConfigChange

getName

public String getName()

Description copied from class: ConfigChange

The bot's name.

Specified by:

getName in class ConfigChange

getSpeedMultiplier

public double getSpeedMultiplier()

Description copied from class: ConfigChange

Bots default speed will be multiplied by this number. Ranges from 0.1 to 2 (default, can be set in ini in [GameBots2004.RemoteBot] MaxSpeed).

Specified by:

getSpeedMultiplier in class ConfigChange

getRotationRate

public Rotation getRotationRate()

Description copied from class: ConfigChange

Bot rotation rate. Default rotation rate is: (Pitch=3072,Yaw=60000,Roll=2048) and may be configured in ini file in [GameBots2004.RemoteBot] DefaultRotationRate. (pitch - up/down, yaw - left/right, roll - equivalent of doing a cartwheel)

Specified by:

getRotationRate in class ConfigChange

isInvulnerable

public boolean isInvulnerable()

Description copied from class: ConfigChange

If bot is invulnerable (cannot die) or not.

Specified by:

isInvulnerable in class ConfigChange

getSelfUpdateTime

public double getSelfUpdateTime()

Description copied from class: ConfigChange

The delay between two self message synchronous batches (can range from 0.01 to 2 seconds). Will be used only if NewSelfBatchProtocol attribute is set to true in INIT message.

Specified by:

getSelfUpdateTime in class ConfigChange

getVisionTime

public double getVisionTime()

Description copied from class: ConfigChange

The delay between two synchronous batches containing vision updates (can range from 0.1 to 2 seconds). If NewSelfBatchProtocol attribute is set to true in INIT message, more batch messages containing only SELF message will arrive between two vision update batches (containing PLR,PRJ,INV.. messages).

Specified by:

getVisionTime in class ConfigChange

isShowDebug

public boolean isShowDebug()

Description copied from class: ConfigChange

If some additional debug information will be shown in the UT2004 server console window.

Specified by:

isShowDebug in class ConfigChange

isShowFocalPoint

public boolean isShowFocalPoint()

Description copied from class: ConfigChange

If true an actor visualizing the location the bot is actually looking at will appear in the game.

Specified by:

isShowFocalPoint in class ConfigChange

isDrawTraceLines

public boolean isDrawTraceLines()

Description copied from class: ConfigChange

if the GB should draw lines representing the auto ray traces of the bot (for more information see ATR message).

Specified by:

isDrawTraceLines in class ConfigChange

isSynchronousOff

public boolean isSynchronousOff()

Description copied from class: ConfigChange

It informs if sending of all GB synchronous messages is enabled or disabled.

Specified by:

isSynchronousOff in class ConfigChange

isAutoPickupOff

public boolean isAutoPickupOff()

Description copied from class: ConfigChange

It enables/disables automatic pickup of the bot. If true the items can be picked up through PICK command.

Specified by:

isAutoPickupOff in class ConfigChange

getAction

public String getAction()

Description copied from class: ConfigChange

Name of current BDI action.

Specified by:

getAction in class ConfigChange

getLocal

public ConfigChangeLocal getLocal()

Specified by:

getLocal in interface ICompositeWorldObject

getShared

public ConfigChangeShared getShared()

Specified by:

getShared in interface ICompositeWorldObject

getStatic

public ConfigChangeStatic getStatic()

Specified by:

getStatic in interface ICompositeWorldObject

update

public IWorldObjectUpdateResult<IWorldObject> update(IWorldObject object)

Specified by:

update in interface IWorldObjectUpdatedEvent

getLocalEvent

public ILocalWorldObjectUpdatedEvent getLocalEvent()

Specified by:

getLocalEvent in interface ICompositeWorldObjectUpdatedEvent

getSharedEvent

public ISharedWorldObjectUpdatedEvent getSharedEvent()

Specified by:

getSharedEvent in interface ICompositeWorldObjectUpdatedEvent

getStaticEvent

public IStaticWorldObjectUpdatedEvent getStaticEvent()

Specified by:

getStaticEvent in interface ICompositeWorldObjectUpdatedEvent

toString

public String toString()

Overrides:

toString in class ConfigChange

toHtmlString

public String toHtmlString()

Overrides:

toHtmlString in class ConfigChange
