cz.cuni.amis.pogamut.ut2004.communication.messages.gbinfomessages
Class Mover

java.lang.Object
  cz.cuni.amis.pogamut.base.communication.messages.InfoMessage
      cz.cuni.amis.pogamut.ut2004.communication.messages.gbinfomessages.Mover

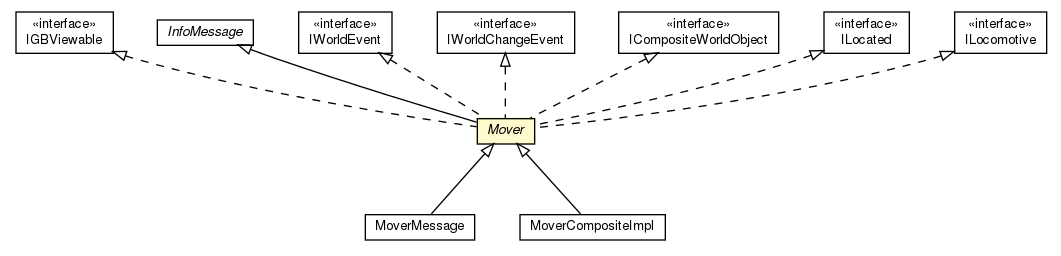

All Implemented Interfaces:

IWorldChangeEvent, IWorldEvent, IWorldObject, ILocated, ILocomotive, IViewable, ICompositeWorldObject, IGBViewable, cz.cuni.amis.utils.listener.Event

Direct Known Subclasses:

MoverCompositeImpl, MoverMessage

public abstract class Mover
extends InfoMessage
implements IWorldEvent, IWorldChangeEvent, ICompositeWorldObject, ILocated, ILocomotive, IGBViewable

Abstract definition of the GameBots2004 message MOV.

Complete message documentation: Synchronous message. Movers can be doors, elevators, or any other chunk of architecture that can move. They generally need to be either run into, or activated by shooting or pressing a button. We are working on ways to provide bots with more of the information they need to deal with movers appropriately.

Nested Class Summary

static class	Mover.MoverUpdate
static class	Mover.ObjectDisappeared

Field Summary

static String	PROTOTYPE Example how the message looks like - used during parser tests.
protected long	SimTime

Constructor Summary

Mover()
Parameter-less contructor for the message.

Method Summary

IWorldObjectUpdatedEvent	createDisappearEvent() Creates an update event that has to update visibility to false.
abstract Location	getBasePos() Base position of the mover.
abstract Location	getBaseRot() Base rotation of the mover.
abstract double	getDelayTime() Delay before starting to open (or before lift starts to move).
abstract UnrealId	getId() A unique Id of this mover assigned by the game.
abstract Location	getLocation() Location of the mover.
abstract double	getMoveTime() How long the mover moves, when it becomes triggered, before it stops.
abstract UnrealId	getNavPointMarker() Navigation point marking this mover.
abstract double	getOpenTime() How long the mover stands still when it reaches its destination position.
long	getSimTime() Simulation time in MILLI SECONDS !!!
abstract String	getState() Name of the state Mover is currently in.
abstract String	getType() String class of the mover.
abstract Velocity	getVelocity() Velocity vector.
abstract boolean	isDamageTrig() True if the mover needs to be shot to be activated.
abstract boolean	isIsMoving() Does the mover move right now?
abstract boolean	isVisible() If the mover is in the field of view of the bot.
protected void	setSimTime(long SimTime) Used by Yylex to slip correct time of the object or programmatically.
String	toHtmlString()
String	toJsonLiteral()
String	toString()

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface cz.cuni.amis.pogamut.multi.communication.worldview.object.ICompositeWorldObject

getLocal, getShared, getStatic

Field Detail

PROTOTYPE

public static final String PROTOTYPE

Example how the message looks like - used during parser tests.

See Also:

Constant Field Values

SimTime

protected long SimTime

Constructor Detail

Mover

public Mover()

Parameter-less contructor for the message.

Method Detail

getSimTime

public long getSimTime()

Simulation time in MILLI SECONDS !!!

Specified by:

getSimTime in interface IWorldChangeEvent

Specified by:

getSimTime in interface IWorldEvent

Specified by:

getSimTime in interface IWorldObject

setSimTime

protected void setSimTime(long SimTime)

Used by Yylex to slip correct time of the object or programmatically.

getId

public abstract UnrealId getId()

A unique Id of this mover assigned by the game.

Specified by:

getId in interface IWorldObject

getLocation

public abstract Location getLocation()

Location of the mover.

Specified by:

getLocation in interface ILocated

isVisible

public abstract boolean isVisible()

If the mover is in the field of view of the bot.

Specified by:

isVisible in interface IViewable

isDamageTrig

public abstract boolean isDamageTrig()

True if the mover needs to be shot to be activated.

getType

public abstract String getType()

String class of the mover.

isIsMoving

public abstract boolean isIsMoving()

Does the mover move right now?

getVelocity

public abstract Velocity getVelocity()

Velocity vector.

Specified by:

getVelocity in interface ILocomotive

getMoveTime

public abstract double getMoveTime()

How long the mover moves, when it becomes triggered, before it stops.

getOpenTime

public abstract double getOpenTime()

How long the mover stands still when it reaches its destination position. After this time, the mover returns back to its initial position.

getBasePos

public abstract Location getBasePos()

Base position of the mover.

getBaseRot

public abstract Location getBaseRot()

Base rotation of the mover.

getDelayTime

public abstract double getDelayTime()

Delay before starting to open (or before lift starts to move).

getState

public abstract String getState()

Name of the state Mover is currently in. Can be used to determine the type of the mover.

getNavPointMarker

public abstract UnrealId getNavPointMarker()

Navigation point marking this mover. We can parse this Id to get information about type of the mover. Marker Id contains "lift" string if it is a lift, "door" string if it is a door, etc.

createDisappearEvent

public IWorldObjectUpdatedEvent createDisappearEvent()

Description copied from interface: IGBViewable

Creates an update event that has to update visibility to false.

Specified by:

createDisappearEvent in interface IGBViewable

Returns:

toString

public String toString()

Overrides:

toString in class InfoMessage

toHtmlString

public String toHtmlString()

toJsonLiteral

public String toJsonLiteral()

Overrides:

toJsonLiteral in class InfoMessage
