cz.cuni.amis.pogamut.sposh.elements

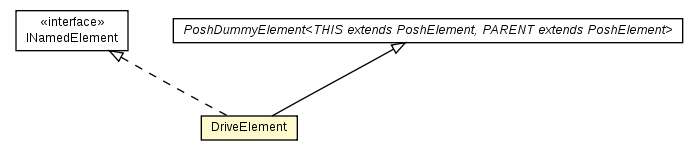

Class DriveElement

java.lang.Object
  cz.cuni.amis.pogamut.sposh.elements.PoshElement<THIS,PARENT>
      cz.cuni.amis.pogamut.sposh.elements.PoshDummyElement<DriveElement,DriveCollection>
          cz.cuni.amis.pogamut.sposh.elements.DriveElement

All Implemented Interfaces:

INamedElement

public final class DriveElement
extends PoshDummyElement<DriveElement,DriveCollection>
implements INamedElement

Drive element (very informative, I know). What is drive? Basically it is a top node of decision tree. It has a trigger and an action. When trigger is satisfied, the drive is elegible to be traversed. Action is just a name, it can be reference (=having same name) to some action, but it can also be reference to C or AP.

In posh it has following syntax(minus variables): (<name> [<trigger>] <name>) The first name is name of the element and second name is name of the action.

In the past, it used to have this form, but not anymore (none knew how to use it and no need to waste scarce resources to support unused features.) (<name> [<trigger>] <name> [<freq>] [<comment>]) The drive is elegible for execution if it has satisfied trigger and it was called less frequently that specified by its frequency (getFreq()).

Author:

HonzaH

See Also:

Useful to have an idea what is {@link DriveElement} for.

Field Summary

static DataFlavor	dataFlavor Data flavor of drive, used in drag-and-drop
static String	deName Property name for name of a drive

Fields inherited from class cz.cuni.amis.pogamut.sposh.elements.PoshDummyElement

IDENT_PATTERN

Method Summary

TriggeredAction	getAction() Get action of this drive (will be performed if elegible, has satisfied trigger and highest priority).
List<PoshElement>	getChildDataNodes() Get list of children of this node.
String	getComment() Deprecated. Not supported in editor
DataFlavor	getDataFlavor() Get data flavour of posh plan element,used during DnD from palette to PoshScene.
Freq	getFreq() Deprecated. Part of original posh, not supported in editor.
String	getName() Get name of the element.
Trigger<DriveElement>	getTrigger() Get trigger of this drive.
LapType	getType() Get type of the element.
boolean	moveChild(int newIndex, PoshElement child) Move child to the @newIndex.
void	setDriveName(String newName) Set name of the drive to new name.
String	toString()

Methods inherited from class cz.cuni.amis.pogamut.sposh.elements.PoshDummyElement

getElementId, getUnusedName, isUsedName, moveChildInList

Methods inherited from class cz.cuni.amis.pogamut.sposh.elements.PoshElement

addElementListener, emitChildDeleted, emitChildMove, emitChildNode, firePropertyChange, getChildId, getChildren, getElementListeners, getId, getParent, getRootNode, isChildOfParent, removeElementListener, setParent

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

deName

public static final String deName

Property name for name of a drive

See Also:

Constant Field Values

dataFlavor

public static final DataFlavor dataFlavor

Data flavor of drive, used in drag-and-drop

Method Detail

getTrigger

public Trigger<DriveElement> getTrigger()

Get trigger of this drive.

getAction

public TriggeredAction getAction()

Get action of this drive (will be performed if elegible, has satisfied trigger and highest priority).

Returns:

action of this drive

toString

public String toString()

Overrides:

toString in class Object

getChildDataNodes

public List<PoshElement> getChildDataNodes()

Description copied from class: PoshElement

Get list of children of this node. Most likely auto generated every time this method is called.

Specified by:

getChildDataNodes in class PoshElement<DriveElement,DriveCollection>

Returns:

List of all children of this node.

getName

public String getName()

Description copied from interface: INamedElement

Get name of the element. The actual name, not display name (e.g. action can have FQN of class, but display name would be derived fromk annotations of the class) or representation (e.g. sense name "health" is different from actual condition of sense "health > 90").

Specified by:

getName in interface INamedElement

Returns:

Name of the element

setDriveName

public void setDriveName(String newName)
                  throws InvalidNameException,
                         DuplicateNameException

Set name of the drive to new name.

Parameters:

newName - New name of the drive.

Throws:

InvalidNameException - If name doesn't match PoshDummyElement.IDENT_PATTERN regexp.

DuplicateNameException

moveChild

public boolean moveChild(int newIndex,
                         PoshElement child)

Description copied from class: PoshElement

Move child to the @newIndex. After child was moved (if it was moved), notify listeners.

Specified by:

moveChild in class PoshElement<DriveElement,DriveCollection>

Returns:

if node succesfully moved

getDataFlavor

public DataFlavor getDataFlavor()

Description copied from class: PoshElement

Get data flavour of posh plan element,used during DnD from palette to PoshScene.

Specified by:

getDataFlavor in class PoshElement<DriveElement,DriveCollection>

Returns:

dataFlavour of posh plan element, never null.

getType

public LapType getType()

Description copied from class: PoshElement

Get type of the element.

Specified by:

getType in class PoshElement<DriveElement,DriveCollection>

Returns:

Type of element.

getFreq

@Deprecated
public Freq getFreq()

Deprecated. Part of original posh, not supported in editor.

Get how frequent can this drive be executed. Basically PoshEngine in each evaluation selects the drive with highest priority that has satisfied trigger and is being called less frequently, than specified by the frequency of the drive element.

Returns:

maximal frequency with which this drive can be called.

getComment

@Deprecated
public String getComment()

Deprecated. Not supported in editor

Get comment of this drive.

Returns:

comment of the drive
