cz.cuni.amis.pogamut.udk.communication.messages.gbinfomessages
Class Mover

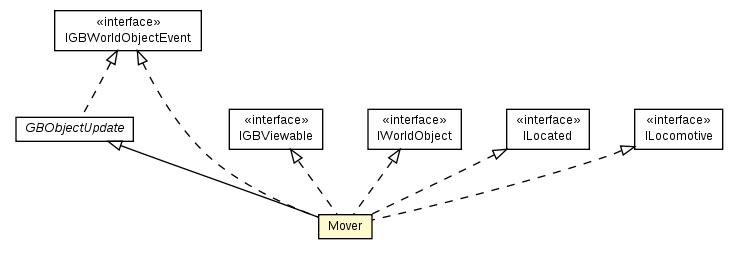

java.lang.Object
  cz.cuni.amis.pogamut.base.communication.messages.InfoMessage
      cz.cuni.amis.pogamut.udk.communication.messages.GBObjectUpdate
          cz.cuni.amis.pogamut.udk.communication.messages.gbinfomessages.Mover

All Implemented Interfaces:

IWorldChangeEvent, IWorldObjectUpdatedEvent, IWorldObject, ILocated, ILocomotive, IViewable, ICompositeWorldObject, IGBViewable, IGBWorldObjectEvent, cz.cuni.amis.utils.listener.Event

public class Mover
extends GBObjectUpdate
implements IGBWorldObjectEvent, IWorldObject, ILocated, ILocomotive, IGBViewable

Synchronous message. Movers can be doors, elevators, or any other chunk of architecture that can move. They generally need to be either run into, or activated by shooting or pressing a button. We are working on ways to provide bots with more of the information they need to deal with movers appropriately. Corresponding GameBots message is MOV.

Nested Class Summary

static class

Mover.ObjectDisappeared Used to drop Visible flag from the object.

Nested classes/interfaces inherited from interface cz.cuni.amis.pogamut.base.communication.translator.event.IWorldObjectUpdatedEvent

IWorldObjectUpdatedEvent.DestroyWorldObject

Field Summary

protected Location	BasePos Base position of the mover.
protected Location	BaseRot Base rotation of the mover.
protected boolean	DamageTrig True if the mover needs to be shot to be activated.
protected double	DelayTime Delay before starting to open (or before lift starts to move).
protected UnrealId	Id A unique Id of this mover assigned by the game.
protected boolean	IsMoving Does the mover move right now?
protected Location	Location Location of the mover.
protected double	MoveTime How long the mover moves, when it becomes triggered, before it stops.
protected UnrealId	NavPointMarker Navigation point marking this mover.
protected double	OpenTime How long the mover stands still when it reaches its destination position.
static String	PROTOTYPE Example how the message looks like - used during parser tests.
protected boolean	Reachable True if the bot can run here, false otherwise.
protected String	State Name of the state Mover is currently in.
protected double	Time
protected String	Type String class of the mover.
protected Velocity	Velocity Velocity vector.
protected boolean	Visible If the mover is in the field of view of the bot.

Constructor Summary

Mover()
Used by Yylex to create empty message then to fill it's protected fields (Yylex is in the same package).

Mover(Mover original)
Cloning constructor.

Mover(Mover Original, boolean Visible)
Used to create event that drops the Visible flag of the item.

Mover(UnrealId Id, Location Location, boolean Visible, boolean Reachable, boolean DamageTrig, String Type, boolean IsMoving, Velocity Velocity, double MoveTime, double OpenTime, Location BasePos, Location BaseRot, double DelayTime, String State, UnrealId NavPointMarker)
Creates new instance of command Mover.

Method Summary

IGBWorldObjectDisappeared	createDisappearEvent() Creates an update event that has to update visibility to false.
boolean	equals(Object obj)
Location	getBasePos() Base position of the mover.
Location	getBaseRot() Base rotation of the mover.
double	getDelayTime() Delay before starting to open (or before lift starts to move).
UnrealId	getId() A unique Id of this mover assigned by the game.
double	getLastSeenTime()
ILocalWorldObject	getLocal()
Location	getLocation() Location of the mover.
double	getMoveTime() How long the mover moves, when it becomes triggered, before it stops.
UnrealId	getNavPointMarker() Navigation point marking this mover.
IWorldObject	getObject() Returns original object (if method update() has already been called, for bot-programmer that is always true as the original object is updated and then the event is propagated).
double	getOpenTime() How long the mover stands still when it reaches its destination position.
ISharedWorldObject	getShared()
long	getSimTime()
String	getState() Name of the state Mover is currently in.
IStaticWorldObject	getStatic()
protected double	getTime()
String	getType() String class of the mover.
Velocity	getVelocity() Velocity vector.
int	hashCode()
boolean	isDamageTrig() True if the mover needs to be shot to be activated.
boolean	isIsMoving() Does the mover move right now?
boolean	isReachable() True if the bot can run here, false otherwise.
boolean	isVisible() If the mover is in the field of view of the bot.
protected void	setTime(double time)
String	toHtmlString()
String	toString()
IWorldObjectUpdateResult	update(IWorldObject obj)

Methods inherited from class cz.cuni.amis.pogamut.base.communication.messages.InfoMessage

toJsonLiteral

Methods inherited from class java.lang.Object

clone, finalize, getClass, notify, notifyAll, wait, wait, wait

Field Detail

PROTOTYPE

public static final String PROTOTYPE

Example how the message looks like - used during parser tests.

See Also:

Constant Field Values

Id

protected UnrealId Id

A unique Id of this mover assigned by the game.

Location

protected Location Location

Location of the mover.

Visible

protected boolean Visible

If the mover is in the field of view of the bot.

Reachable

protected boolean Reachable

True if the bot can run here, false otherwise.

DamageTrig

protected boolean DamageTrig

True if the mover needs to be shot to be activated.

Type

protected String Type

String class of the mover.

IsMoving

protected boolean IsMoving

Does the mover move right now?

Velocity

protected Velocity Velocity

Velocity vector.

MoveTime

protected double MoveTime

How long the mover moves, when it becomes triggered, before it stops.

OpenTime

protected double OpenTime

How long the mover stands still when it reaches its destination position. After this time, the mover returns back to its initial position.

BasePos

protected Location BasePos

Base position of the mover.

BaseRot

protected Location BaseRot

Base rotation of the mover.

DelayTime

protected double DelayTime

Delay before starting to open (or before lift starts to move).

State

protected String State

Name of the state Mover is currently in. Can be used to determine the type of the mover.

NavPointMarker

protected UnrealId NavPointMarker

Navigation point marking this mover. We can parse this Id to get information about type of the mover. Marker Id contains "lift" string if it is a lift, "door" string if it is a door, etc.

Time

protected double Time

Constructor Detail

Mover

public Mover(UnrealId Id,
             Location Location,
             boolean Visible,
             boolean Reachable,
             boolean DamageTrig,
             String Type,
             boolean IsMoving,
             Velocity Velocity,
             double MoveTime,
             double OpenTime,
             Location BasePos,
             Location BaseRot,
             double DelayTime,
             String State,
             UnrealId NavPointMarker)

Creates new instance of command Mover. Synchronous message. Movers can be doors, elevators, or any other chunk of architecture that can move. They generally need to be either run into, or activated by shooting or pressing a button. We are working on ways to provide bots with more of the information they need to deal with movers appropriately. Corresponding GameBots message for this command is .

Parameters:

Id - A unique Id of this mover assigned by the game.

Location - Location of the mover.

Visible - If the mover is in the field of view of the bot.

Reachable - True if the bot can run here, false otherwise.

DamageTrig - True if the mover needs to be shot to be activated.

Type - String class of the mover.

IsMoving - Does the mover move right now?

Velocity - Velocity vector.

MoveTime - How long the mover moves, when it becomes triggered, before it stops.

OpenTime - How long the mover stands still when it reaches its destination position. After this time, the mover returns back to its initial position.

BasePos - Base position of the mover.

BaseRot - Base rotation of the mover.

DelayTime - Delay before starting to open (or before lift starts to move).

State - Name of the state Mover is currently in. Can be used to determine the type of the mover.

NavPointMarker - Navigation point marking this mover. We can parse this Id to get information about type of the mover. Marker Id contains "lift" string if it is a lift, "door" string if it is a door, etc.

Mover

public Mover(Mover original)

Cloning constructor.

Mover

public Mover()

Used by Yylex to create empty message then to fill it's protected fields (Yylex is in the same package).

Mover

public Mover(Mover Original,
             boolean Visible)

Used to create event that drops the Visible flag of the item.

Method Detail

getId

public UnrealId getId()

A unique Id of this mover assigned by the game.

Specified by:

getId in interface IWorldObjectUpdatedEvent

Specified by:

getId in interface IWorldObject

getLocation

public Location getLocation()

Location of the mover.

Specified by:

getLocation in interface ILocated

isVisible

public boolean isVisible()

If the mover is in the field of view of the bot.

Specified by:

isVisible in interface IViewable

isReachable

public boolean isReachable()

True if the bot can run here, false otherwise.

isDamageTrig

public boolean isDamageTrig()

True if the mover needs to be shot to be activated.

getType

public String getType()

String class of the mover.

isIsMoving

public boolean isIsMoving()

Does the mover move right now?

getVelocity

public Velocity getVelocity()

Velocity vector.

Specified by:

getVelocity in interface ILocomotive

getMoveTime

public double getMoveTime()

How long the mover moves, when it becomes triggered, before it stops.

getOpenTime

public double getOpenTime()

How long the mover stands still when it reaches its destination position. After this time, the mover returns back to its initial position.

getBasePos

public Location getBasePos()

Base position of the mover.

getBaseRot

public Location getBaseRot()

Base rotation of the mover.

getDelayTime

public double getDelayTime()

Delay before starting to open (or before lift starts to move).

getState

public String getState()

Name of the state Mover is currently in. Can be used to determine the type of the mover.

getNavPointMarker

public UnrealId getNavPointMarker()

Navigation point marking this mover. We can parse this Id to get information about type of the mover. Marker Id contains "lift" string if it is a lift, "door" string if it is a door, etc.

getTime

protected double getTime()

setTime

protected void setTime(double time)

getLastSeenTime

public double getLastSeenTime()

getLocal

public ILocalWorldObject getLocal()

Specified by:

getLocal in interface ICompositeWorldObject

getShared

public ISharedWorldObject getShared()

Specified by:

getShared in interface ICompositeWorldObject

getStatic

public IStaticWorldObject getStatic()

Specified by:

getStatic in interface ICompositeWorldObject

getSimTime

public long getSimTime()

Specified by:

getSimTime in interface IWorldChangeEvent

Specified by:

getSimTime in interface IWorldObject

equals

public boolean equals(Object obj)

Overrides:

equals in class Object

hashCode

public int hashCode()

Overrides:

hashCode in class Object

createDisappearEvent

public IGBWorldObjectDisappeared createDisappearEvent()

Description copied from interface: IGBViewable

Creates an update event that has to update visibility to false.

Specified by:

createDisappearEvent in interface IGBViewable

Returns:

update

public IWorldObjectUpdateResult update(IWorldObject obj)

Specified by:

update in interface IWorldObjectUpdatedEvent

getObject

public IWorldObject getObject()

Returns original object (if method update() has already been called, for bot-programmer that is always true as the original object is updated and then the event is propagated).

toString

public String toString()

Overrides:

toString in class InfoMessage

toHtmlString

public String toHtmlString()
